Customizable Size Warehouse Prefabricated Buildings H Beam Building Construction

Brand Name : HCGG

Model Number : SSWH001

Certification : CE/ISO 9001/ISO 3834/ISO 14001/ISO 45001

MOQ : 100 square meters

Price : USD25-80 Square Meter/Negotiable

Payment Terms : L/C,T/T,Western Union,.pay

Supply Ability : 50000 Tons/year

Delivery Time : 20-50days

Packaging Details : Conventional sea freight packing;Steel pallets

Place of Origin : Henan,China

Main Structurel Material : Q355B/ASTM A572 Gr.50/EN S355/JIS SM490

Secondary StructurelMaterial : Q235B / ASTM A36/ EN S235JR / JIS SS400

Other Material : Q460 / ASTM A572 Gr.65 /EN S460 / JIS SM570

Customization : Style,size,Color,Material

Project Solution Capability : CAD graphic design, 3D Tekla modeling design, total solution for projects,One-stop steel structure solution,Project-based supply

After-sale Service : Online Technical Support, Onsite Installation,Onsite Training,Onsite Inspection,Installation Drawings Support

Column and Beam : Welded H-section/Hot-rolled H-beam/Box column

Purlin : C.Z Shape Steel Channel

Roof and Wall panel : EPS/Rock wool/PU / PIR sandwich panel,Corrugated/Trapezoidal steel sheet/Customized/

Window : Aluminum alloy / PVC /Industrial louver window

Door : Sliding/Rolling shutter/Hinged steel/Customized steel door

Surface treatment : Hot-dip galvanized Zinc-rich primer + top coat Anti-corrosion coating

Service Life : 20-50 Years

Life Span : More Than 50 Years

Secondary Structurel Material : Q235B / ASTM A36/ EN S235JR / JIS SS400

Contact Now

Customizable Size Prefabricated Light Steel Structure Warehouse
H Beam Building Construction

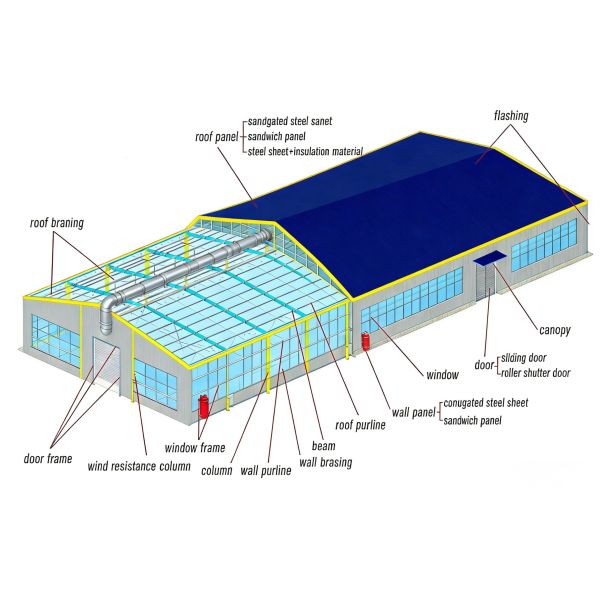

Steel-framed warehouses are specialized storage facilities featuring a main load-bearing system constructed from hot-rolled steel beams, columns, and trusses. Unlike traditional warehouses, these structures can be erected rapidly with prefabricated steel components assembled on-site within weeks. Their exceptional load-bearing capacity supports heavy-duty racking systems and overhead cranes, meeting rigorous industrial warehousing requirements. The steel framework is treated with anti-corrosion coatings to withstand humid storage environments, while the modular design allows for seamless expansion to accommodate growing storage demands. Additionally, the recyclability of steel reduces the building's carbon footprint, providing a sustainable and cost-effective solution for modern supply chains.
Customizable Size Warehouse Prefabricated Buildings H Beam Building Construction
Product Specifications & Technical Parameters
Category Parameter Value Range Remarks
Main Structure Steel Grade Q235B / Q355B Q355B suitable for heavy-duty and high seismic intensity scenarios
Single Span Width 12–30m Maximum span up to 60m+ with multi-span splicing
Eave Height 4.5–12m Customizable up to 18m for high-level racking systems
Column Spacing 6–9m Reducible to 4.5m for heavy-load applications
Connection Method Bolted / Welded Bolted for easy assembly & disassembly; welded for higher stability
Enclosure System Wall/Roof Panel 50–100mm color steel sandwich panel Core material: rock wool (fireproof) / polystyrene (thermal insulation)
Industrial Door Size Width 3–12m, Height 3–8m Types: roller shutter door / sliding door, suitable for forklift access
Load Parameters Roof Live Load 0.3–0.7kN/㎡ Adjustable based on local snow load standards
Floor Load Capacity 5–20kN/㎡ Reinforceable to 30kN/㎡+ for heavy-duty warehouses
Protection Parameters Anti-Corrosion Treatment Epoxy zinc-rich coating (film thickness ≥120μm) Hot-dip galvanizing recommended for coastal humid areas
Fire Resistance Rating Fire resistance limit 0.5–2.0h Achieved by fireproof coating, compliant with fire codes
Seismic Parameters Seismic Fortification Intensity 6–8 degrees Designed according to seismic codes of the construction area
The following parameters are for reference only. Please contact us for detailed communication and confirmation of specific needs.
Key Advantages & Features
  • Large Clear Span Design
  • Superior Quality Control
  • Low Maintenance Cost
  • Architectural Versatility
  • Reduced Construction Time
Manufacturing & Construction Process
  1. Raw Material Procurement & Incoming Inspection
  2. CNC Blanking & Bevel Processing
  3. Warehouse Component Assembly
  4. Welding & Defect Detection
  5. Deformation Straightening & Precision Machining
  6. Derusting & Anti-Corrosion Treatment

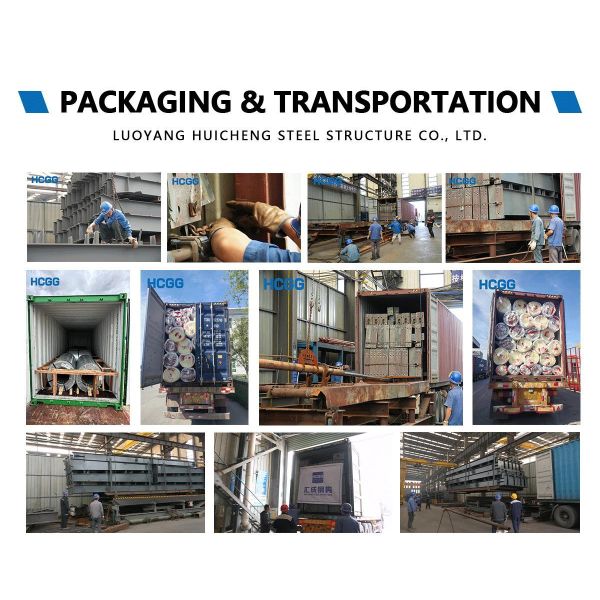

  7. Final Inspection & Standard Packaging
Customizable Size Warehouse Prefabricated Buildings H Beam Building Construction Customizable Size Warehouse Prefabricated Buildings H Beam Building Construction Customizable Size Warehouse Prefabricated Buildings H Beam Building Construction
